Best Drill Guide (2026): 5 Portable Picks for Straight Holes, Angles & Dowels

The one-hole moment that ruins an install

You’re mounting a hinge, drilling a clean pilot hole… and the bit leans just enough that the screw exits the side of the stile. Or you’re drilling shelf pins and the last hole on the row ends up slightly off, so the shelf rocks forever. It’s rarely a dramatic failure—just a small angle error that shows up when parts need to line up.

That’s exactly what a drill guide is for: keeping the drill square, starting the bit in the right spot, and repeating the same result across multiple holes. If you don’t own a drill press (or you can’t fit a cabinet side on one), a portable drill guide is the next best thing.

Disclosure: As an Amazon Associate, DrillAlign may earn from qualifying purchases. This doesn’t change what we recommend.

This page compares 5 proven styles of drill guides for 2026—focused on real DIY and woodworking use cases:

• Drill guide for straight holes in boards and panels
• Repeatable angles for jigs, fixtures, and odd joinery setups
• Dowel holes with cleaner starts and more consistent depth

If you want the basics first, start at Drill Guides hub

---

Best Drill Guide (2026): Top 5 Picks

1) Kreg Portable Drilling Guide — Best overall for straight holes (most DIY + woodworking)

Why it’s a top pick: A wide base + guided drilling path reduces tipping and helps you start on-center. It’s the most forgiving option for beginners drilling straight holes without a drill press.

Decision bullets

• Compatibility: Best with common wood bits (brad-point/twist) in typical shop sizes; works on plywood, MDF, hardwood/softwood.
• How it stays square: Guided sleeve/bushing + a broad base footprint reduces roll/yaw on panels (more forgiving than narrow bases).
• Angle/stability: Primarily a straight-hole tool; stability comes from base contact and careful hand pressure.
• Clamping/anchoring: Works best braced against a stop block/fence or lightly clamped when possible; add a non-slip pad if your bench is slick. For repeated holes, clamp a simple fence once and drill the whole batch.
• Best for: Straight pilot holes, hardware installs, and accurate holes in cabinet sides and panels.

Shop tip: Pair this style with sharp brad-point bits for cleaner starts and less wandering: (guide coming soon)

---

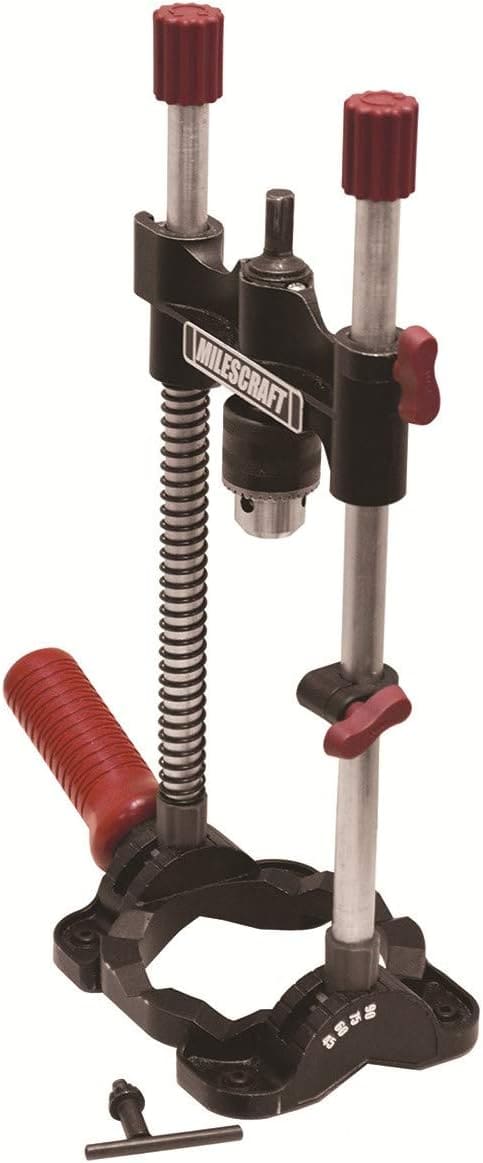

2) Milescraft DrillMate (portable “mini drill press” style) — Best for repeatable angles + controlled

If your main goal is drilling the same angle repeatedly (or you want a drill-press-like plunge feel), a column-style guide is the step up. This is the style people choose when they’re tired of “almost the same angle” across multiple parts.

Why it’s a top pick: The plunge/column design helps keep the bit path consistent and makes angled drilling less sketchy than freehanding.

Decision bullets

• Compatibility: Works with many common wood bits; also useful for light metal/plastic drilling when the work is clamped and the bit is correct for the material.
• How it stays square: Column guidance reduces side-to-side drift during plunge; consistency depends on how much play the columns have under load.
• How it locks angles/stays stable: Angle settings are usable, but accuracy improves when you set the angle and verify it before drilling repeats.
• Clamping/anchoring: Clamp the base to the work or to a sacrificial board; stability improves dramatically with two clamps instead of one.
• Best for: Repeatable angled holes, controlled drilling depth, and batch work like jigs/fixtures.

---

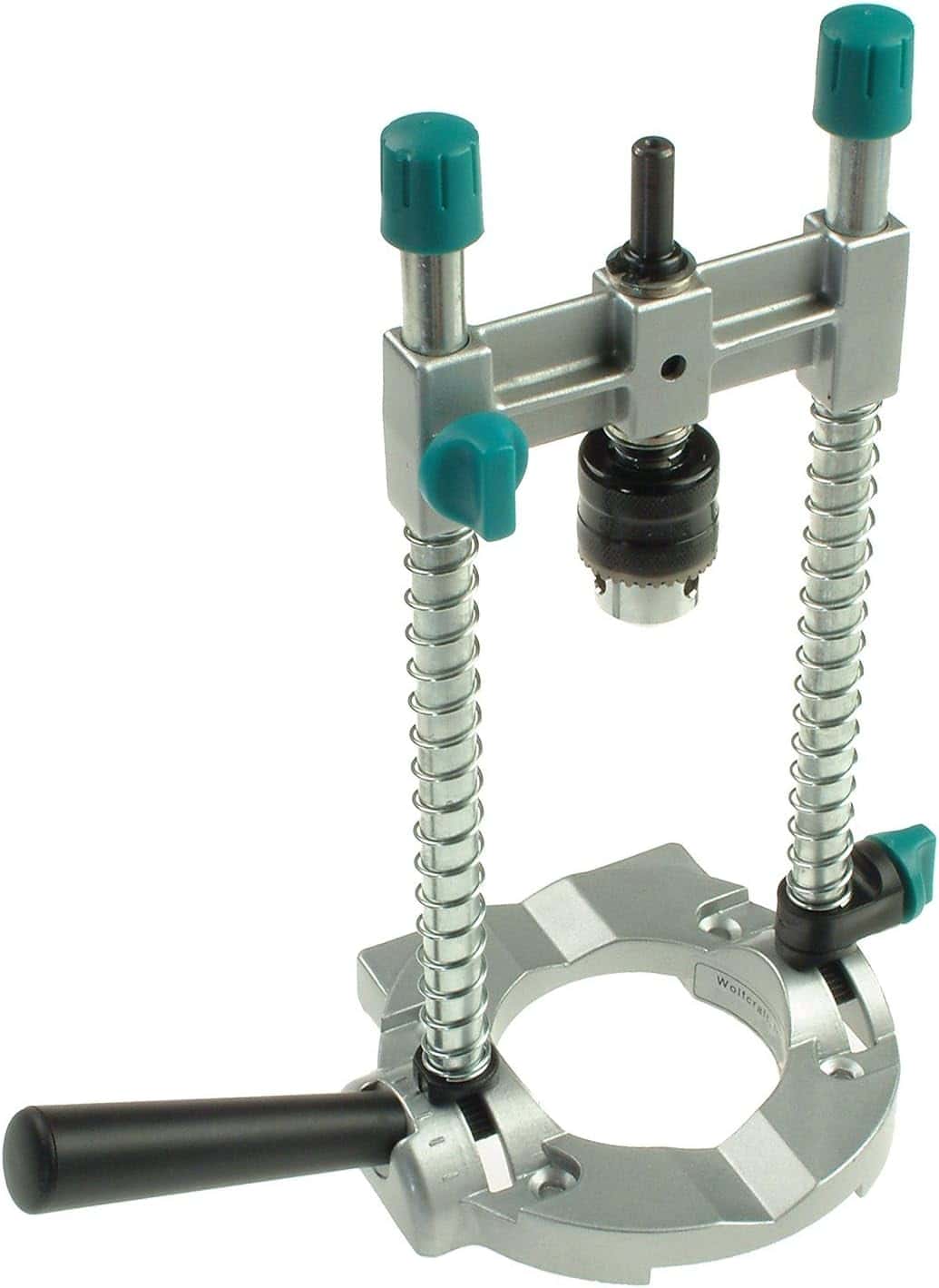

3) Wolfcraft Drill Guide — Best budget-first choice (occasional use, still better than freehand)

Not everyone needs a heavy, shop-grade solution. If you mainly want “straighter than my wrist can hold” for home repairs, shelves, brackets, and light woodworking, a budget guide can be the right move—if you use good technique.

Why it’s a top pick: It’s a practical entry point into guided drilling: learn the basics (marking, clamping, starting slow) without overbuying.

Decision bullets

• Compatibility: Best with small-to-medium drill bit sizes for wood; avoid forcing large bits that amplify flex.
• How it stays square: Basic guide geometry helps, but rigidity is the limiter—let the bit cut and avoid side load.
• Angle/stability: Usually more about straight drilling than precision angle work; treat angle scales as “rough.”
• Clamping/anchoring: The guide must be stabilized—clamp the work, brace the guide, and use a backer board.
• Best for: Budget-friendly straight holes for DIY tasks where “close and clean” matters.

Quick win: Brad-point bits often make a budget guide feel like an upgrade: (guide coming soon)

---

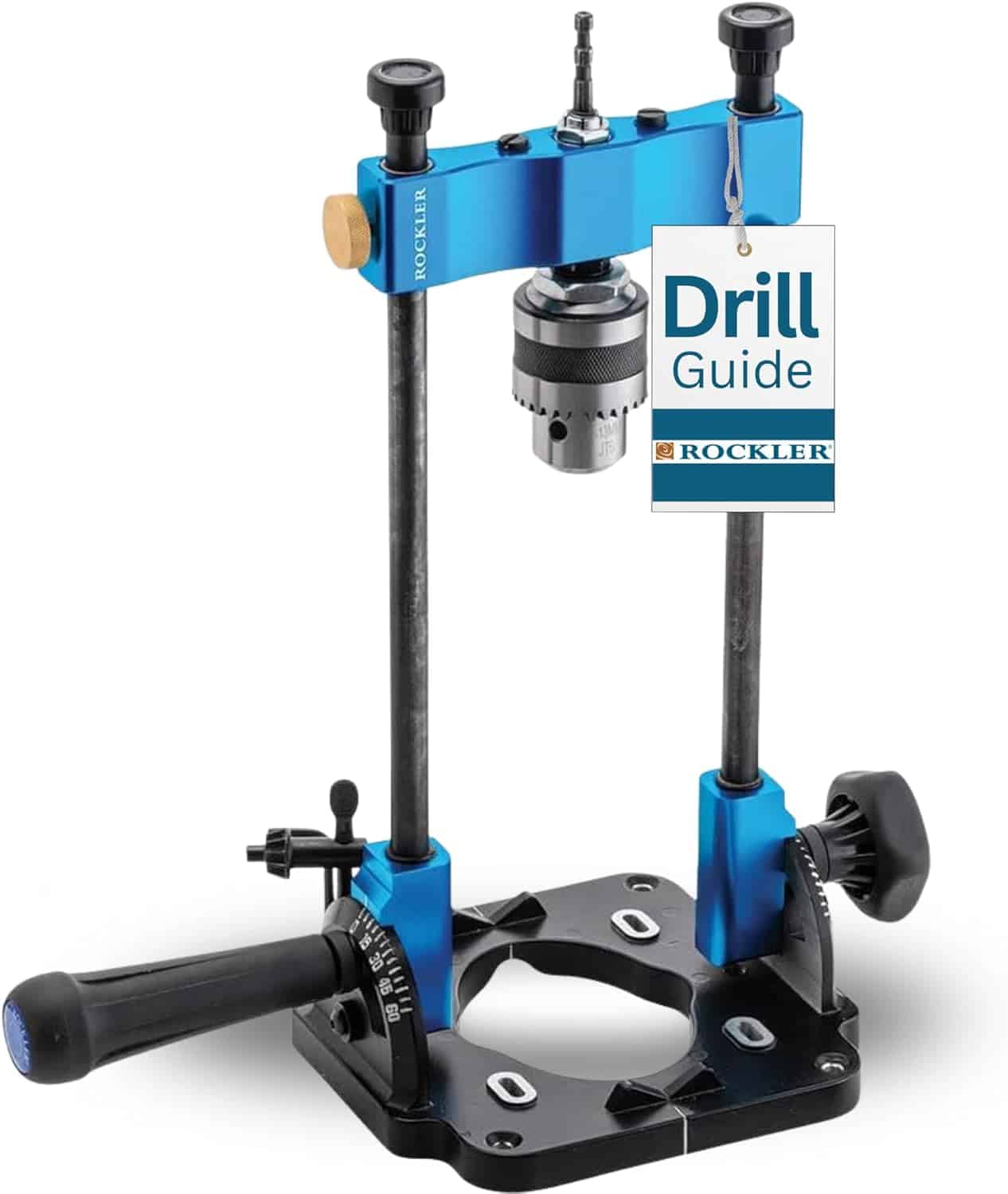

4) Rockler Portable Drill Guide (clamp-friendly base style) — Best for edge drilling + small parts

Edge drilling is where many people give up and grab pocket screws—because it’s easy to roll the drill and drift off-center. A guide that’s easy to register on an edge and clamp down makes a big difference for cabinet parts, stretchers, face frames, and narrow stock.

Why it’s a top pick: It’s about workholding reality. If a guide is awkward to clamp, it won’t get used. Clamp-friendly designs get used.

Decision bullets

• Compatibility: Ideal for wood drilling (pilot holes, clearance holes, small dowel holes) on boards, panels, and edges.
• How it stays square: Edge registration + base contact reduces roll; a guided sleeve/bushing helps keep the bit path consistent.
• Angle/stability: Stability comes from registering to an edge/fence and clamping so it can’t creep.
• Clamping/anchoring: Best when the workpiece is clamped to a larger “carrier” board so nothing tips; clamp the guide if possible.
• Best for: Straight holes into edges and repeatable holes on narrow parts.

Learn the technique: how to drill straight holes without a drill press

---

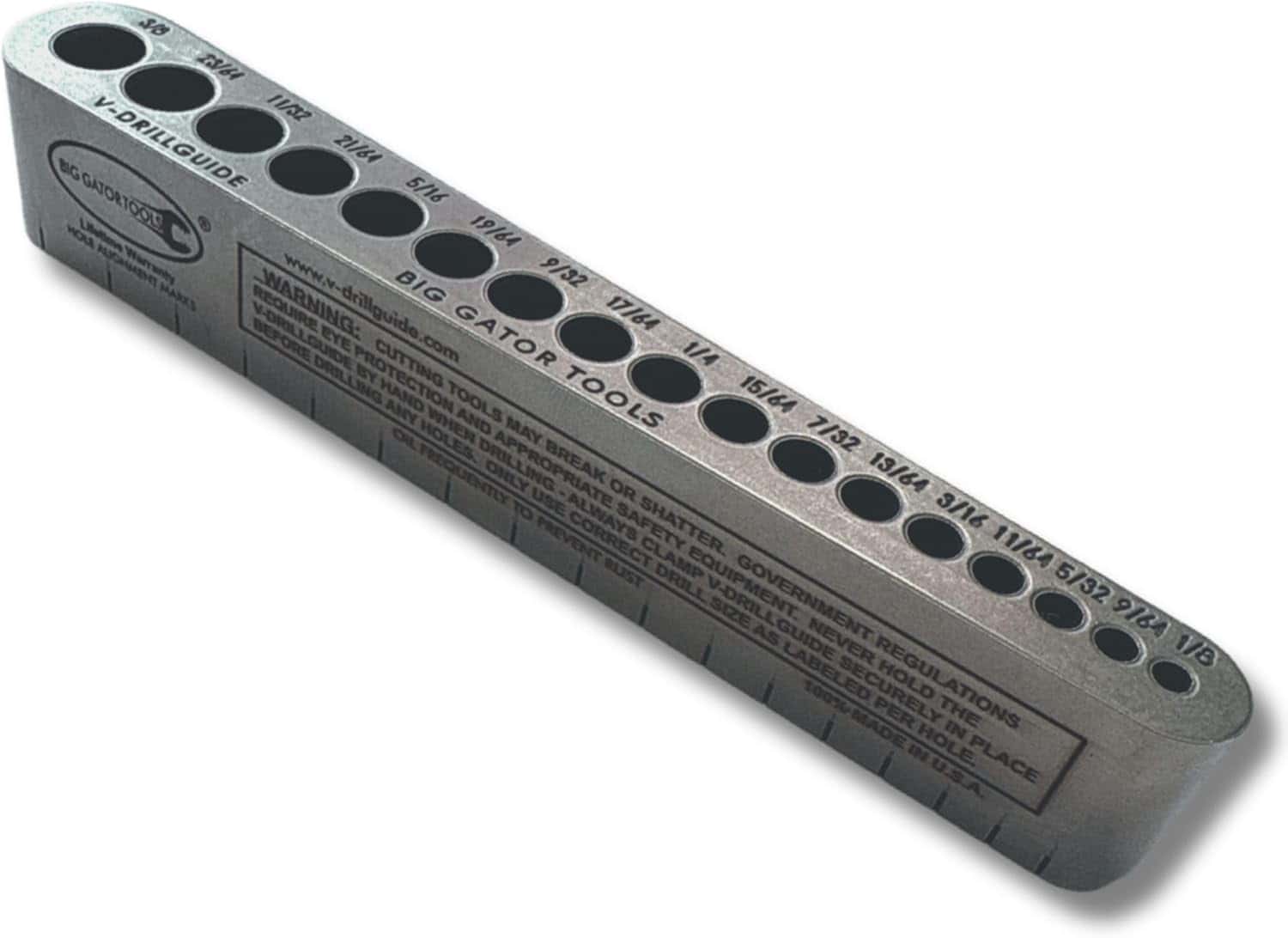

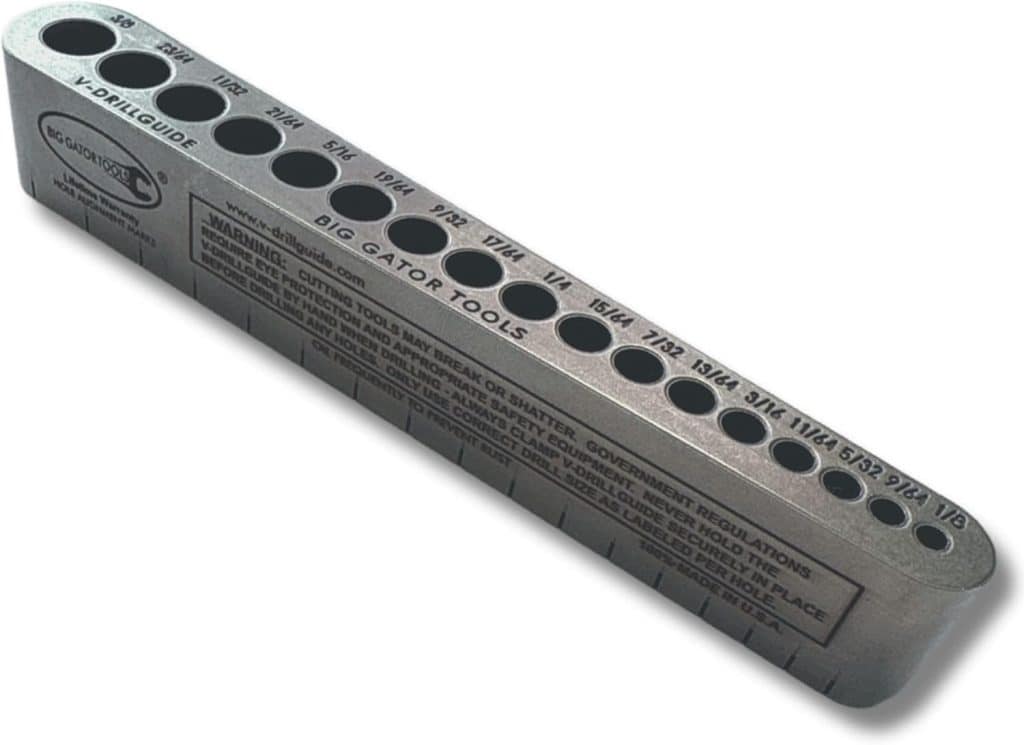

5) Big Gator Tools V-Drill Guide (hardened guide block) — Best compact guide for common sizes + round stock

A hardened guide block is the “grab it and go” option. Clamp it, drill through the hardened bushing, and you get a straighter start than freehand—especially helpful on round stock thanks to the V-groove.

Why it’s a top pick: Simple, portable, and great for quick straight holes when you don’t need a plunge mechanism.

Decision bullets

• Compatibility: Size-specific bushings mean it shines with common drill bit sizes; works well for wood and light metal/plastic when properly clamped.
• How it stays square: Hardened bushing controls the bit’s entry angle; the block’s faces reference your work surface.
• Angle/stability: Not an angle tool; stability comes from clamping pressure and a flat reference surface.
• Clamping/anchoring: Must be clamped firmly—guide blocks are only accurate when they cannot shift at all.
• Best for: Quick straight holes in common sizes, plus drilling into dowels/round rods without rolling.

For dowel workflows and alignment tips: (guide coming soon)

---

How we choose

To recommend a drill guide that actually helps in a home shop, we focus on what changes results:

• Rigidity under pressure (less flex = straighter hole)
• How it references square (guided sleeve/bushing, column play, base footprint)
• Stability and clamping reality (if it slides, accuracy is gone)
• Angle repeatability (locks solid vs “sort of” angle)
• Real-world use cases (panels, edges, awkward installs, batch drilling)

---

Don’t buy the wrong drill guide

Don’t buy this if…

• You need perfectly matched dowel alignment across two parts and you expect a generic drill guide to do a doweling jig’s job. (It can help, but it’s not the same tool.)
• You plan to drill large holes with big bits and you’re looking at a lightweight guide that flexes. Large bits magnify every wobble.
• You hate clamping and you won’t clamp. Any portable drill guide that isn’t held still will drift.

Buy this if…

• You want to drill straight holes without a drill press in cabinet sides, shelves, and furniture parts—especially when the part is too big for a drill press anyway.
• You need repeatable angles for jigs/fixtures or angled joinery and you want the hole to look the same across multiple pieces.
• You do installs/repairs and want a portable drill guide that reduces “oops” moments (crooked pilot holes, blown edges, misaligned hardware).

---

Buyer’s guide: how to choose a drill guide that actually drills straight

Two main styles (and why it matters)

Most drill guides fall into two camps:

1. Stable-base guide (straight-hole focused)
   Fast setup. Great for panels and general drilling. You’ll see this style recommended as the “first drill guide” because it’s easy to use.
2. Column/plunge guide (mini drill press style)
   Slower setup, but better control. Stronger choice for repeatable angles and batch work.

If you’re not sure which camp you need, start with technique in the Drill Guides hub.

What “stays square” really means (play, footprint, and bit start)

A drill guide stays square through three things:

• A constrained drill path (bushing/column) that keeps the bit from leaning
• A stable footprint that resists tipping and rocking
• A clean start (good registration + the right bit) so the bit doesn’t walk

If you’re drilling plywood or melamine, bit walking is a bigger deal than people think. That’s why brad-point bits are such a common “accuracy upgrade” in wood: (guide coming soon)

Quick accuracy test (2 minutes)

• Drill a test hole in a scrap board using your guide.
• Flip the board, put the bit back in the hole, and check with a small square if the bit stays perpendicular.
• If it leans, you’re likely side-loading the drill or the guide is shifting—clamp the guide or brace it against a stop block and retry.

Angle drilling: locking vs “wishful” angle scales

Angle drilling is where cheap mechanisms show their limits. Two practical rules:

• If the guide locks angles mechanically, it’s more repeatable.
• If it relies on a loose adjustment with a printed scale, treat it as “close” unless you verify.

When you’re doing real angled drilling (same angle across multiple parts), use a test piece and verify the setup before committing. Step-by-step help: (guide coming soon)

Dowel holes: bit choice, depth control, tear-out

For dowel holes, you’re chasing three things: straight entry, consistent depth, and clean edges.

• Bit choice: brad-point bits start on-center and reduce tear-out.
• Depth control: a stop collar beats tape when you need consistent depth across many holes.
• Backer boards: clamp a backer tight when drilling through to prevent blowout on the exit side.

If your dowel holes need to line up between two boards, do at least one of these:

• Drill both pieces using the same reference face and the same stop setup
• Use dowel centers to transfer locations
• Or step up to a dedicated doweling jig for furniture-grade alignment

When to step up to a doweling jig (instead of a drill guide):

If you’re building furniture where the joint has to self-align (table aprons, face frames, chairs), a dedicated doweling jig is usually faster and more repeatable than trying to “perfect” a portable drill guide. The jig registers off the edge/face, controls spacing, and keeps both mating parts aligned with less measuring.

More on the workflow: dowel holes with a drill guide (guide coming soon)

Clamping & workholding (the real secret)

Portable drilling accuracy is mostly workholding.

• Clamp the workpiece so it can’t pivot.
• Stabilize the guide so it can’t creep.
• For small parts, clamp the part to a larger carrier board so the guide sits flat and your clamps have somewhere to go.

If you’ve ever drilled a hole that started perfect and ended crooked, it’s often because the work shifted mid-hole or the drill got side-loaded. This is the “why” behind most drill guide frustration (see the mistakes & fixes guide below).

Sizing & compatibility checks (drill, chuck, bits, bushings)

Before you buy, check these (they prevent the “it doesn’t fit my drill” headache):

• Chuck capacity: some bits (especially larger brad-point/Forstner shanks) need a bigger chuck than tiny drivers/drills provide.
• Clearance: make sure the guide has room for your drill body and hands.
• Bit type: guide blocks are often size-specific; plunge guides are more flexible.
• Typical hole sizes: list the holes you actually drill (pilot holes, shelf pins, dowels, hardware). Match the guide to that list.

If your shopping list is mostly “portable drill guide” use cases, see the focused roundup: (buyer guide coming soon)

---

Troubleshooting table: problem → cause → fix

Problem you see	Likely cause	Fix that works in a real shop
Hole starts on your mark but exits off to one side	Side pressure while drilling; guide isn’t stabilized	Clamp the work, brace or clamp the guide, drill with steady downforce (no “steering”)
Bit skates at the start and the hole is off-center	No punch/awl mark; starting too fast	Make an awl mark, start slow for the first 1/8″, then increase speed
Hole isn’t square even with a guide	Guide shifted; base wasn’t flat; column play under load	Re-check base contact, clamp the guide, reduce pressure and let the bit cut
Tear-out around the entry	Dull bit; wrong bit type	Switch to a sharp brad-point bit; score with a knife line for delicate surfaces
Blowout on the exit side	No backer board	Clamp a backer tight and drill into it
Angled holes vary from piece to piece	Angle wasn’t locked/verified; setup changed	Lock the angle, verify with a square/angle gauge, drill a test piece, then batch drill
Holes are straight but inconsistent depth	Tape “flag” moves; inconsistent stopping	Use a stop collar or a drill guide with a positive depth stop
Shelf pin holes look straight but shelf rocks	Hole spacing/layout inconsistent	Use a layout stick/jig, register from the same face, and drill test holes first

For a deeper fix list (with examples): drill guide mistakes (and quick fixes)

---

Common mistakes and quick wins (shop-pro tips)

Quick wins that instantly improve straight holes

• Start slow for the first second or two. Most wandering happens at the beginning.
• Use a backer for every through-hole you care about.
• Clear chips on deeper holes. Packed chips push the bit and heat it up.
• Register from one face (especially for dowels): pick a reference face and keep it consistent.

Common mistakes

• Treating a drill guide like it’s self-centering. You still need a good mark and registration.
• Pushing too hard. Flex and drift go up as force goes up.
• Trying to drill small parts without a carrier board. If the part tilts, the hole tilts.

If you want a clean technique walkthrough, see our guide on how to drill straight holes without a drill press.

---

FAQs

1) What’s the best drill guide for straight holes?

For most DIY and woodworking, a stable-base portable drilling guide is the easiest way to drill straighter holes without a drill press—especially in panels and cabinet sides.

2) Is a portable drill guide accurate enough for woodworking?

Yes for most tasks (hardware, pilot holes, shelf work, many dowel-size holes) when you clamp well and start the hole cleanly. For precision dowel alignment across two parts, a dedicated doweling jig can be easier.

3) Can a drill guide replace a drill press?

A drill guide can replace a drill press for many DIY tasks (pilot holes, hardware, shelf work, many straight holes) if you clamp well and drill in batches. A drill press still wins for repeated precision, perfectly square drilling at speed, and larger Forstner/counterbore work.

4) Which drill bit works best with a drill guide in wood?

Brad-point bits usually start cleaner and wander less in wood than standard twist bits. They’re a common fix when holes drift even with a guide.

5) How do I drill repeatable angled holes without a drill press?

A column/plunge style drill guide is the best option. Lock the angle, verify it with a square/angle gauge, drill a test piece, then drill your real parts in a batch.

6) What’s the best drill guide approach for shelf pin holes?

For a few holes, a stable-base drill guide plus a brad-point bit and a depth stop works well. If you’re drilling full cabinet rows, a dedicated shelf pin jig is faster and keeps spacing consistent: best shelf pin jig (buyer guide coming soon).

7) Why does my drill guide still produce slightly angled holes?

Most often: the guide shifted, the base wasn’t sitting flat, you side-loaded the drill, or the bit walked at the start. Clamp better, start slower, and reduce sideways pressure.

8) Can I use a drill guide for dowel holes?

Yes—especially for dowel-size holes—if you use brad-point bits and consistent depth control (stop collar). For tight-fitting joinery alignment, consider dowel centers or a doweling jig.

9) Do drill guides work on metal or plastic?

Some do, but you’ll need the correct bit and slower speeds, and the work must be clamped firmly. Many buyers primarily use them for wood, which is where most portable guides shine.

Conclusion: which drill guide should you buy?

If you want the most useful “first drill guide,” start with a stable-base portable drilling guide like the Kreg-style option (Pick #1). It’s the simplest way to get straighter holes fast.
For repeatable angles or controlled plunge drilling, choose the column/plunge style (Pick #2).
On a tight budget, Pick #3 can still deliver clean results when you clamp well and use a sharp brad-point bit.
If you drill a lot of edge holes, Pick #4 earns its spot.
And if you want a compact, tough guide for common sizes (plus round stock), Pick #5 is the grab-and-go tool.

For a deeper portable-focused comparison: (buyer guide coming soon)
